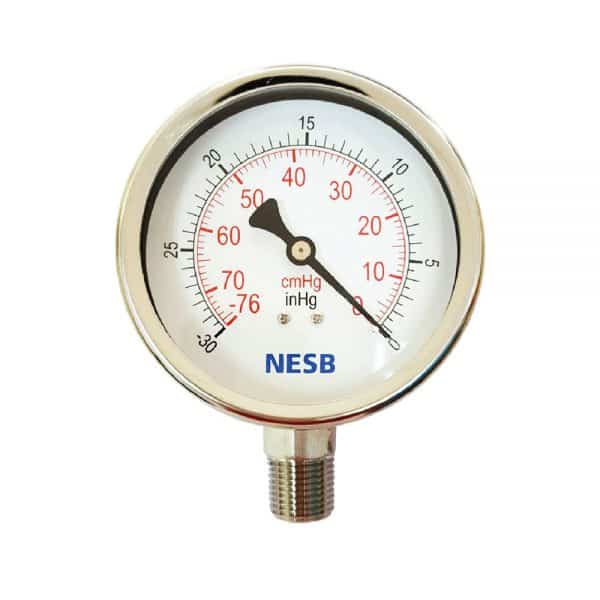

All SUS Pressure Gauge SS316 Bottom Connection

Size 2.5”( 63mm ) , 4“( 100 mm ) , 6”( 150 mm )
Measuring compound, vacuum 76cmHg ( 30“Hg ) up to 15,000psi (1,000 bar)
Dial white aluminium with markings and graduations
Window polycarbonate , glass
Pointer black finished aluminium
Ring 304 stainless steel
Case 304 stainless steel
Filling dry and fill-able (glycerin)
Movement 304 stainless steel
Socket 316 stainless steel
Bourdon Tube 316L C-tube for vacuum to 1,000psi, spiral tube wound for 1,000psi to 15,000psi
Connection ¼”, ⅜”, ½” BSPT , NPT
Mounting bottom and center back with surface, flush mount and U-clamp
Accuracy 2.5”, 4”, 6” (±1.5% of full scale)
Temperature -20 ~ 200ºC ( -4 ~ 400ºF )
Application

general industry, food, petrochemicals, chemicals, fossil fuel, power station, water, air, gas, refrigeration
