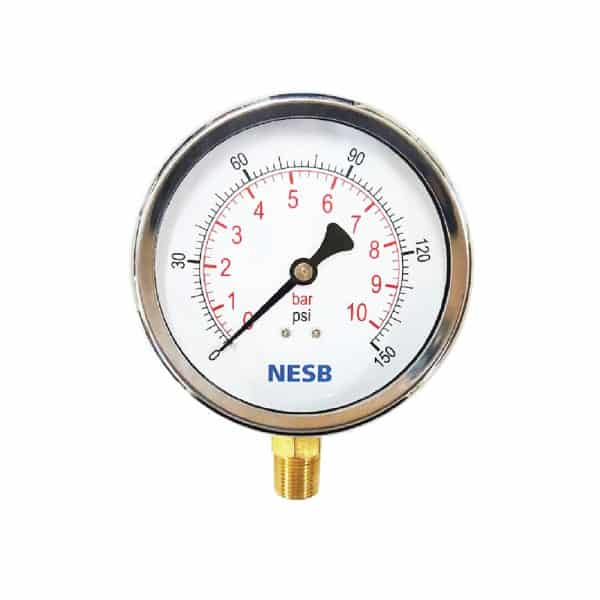

Semi SUS Pressure Gauge Brass Bottom Connection

Size2.5”( 63mm ) , 4”( 100 mm ) , 6”( 150 mm )
Measuringcompound, vacuum 76cmHg ( 30”Hg ) up to 15,000psi (1,000 bar)
Dialwhite aluminium with markings and graduations
Windowpolycarbonate , glass
Pointerblack finished aluminium
Ring304 stainless steel
Case304 stainless steel
Fillingdry and fill-able (glycerin)
Movementbrass
Socketbrass
Bourdon Tubephosphor bronze C-tube for vacuum to 800 psi, spiral tube wound for 1,000psi to 15,000psi
Connection¼”, ⅜”, ½” BSPT , NPT
Mountingbottom and center back with surface, flush mount and U-clamp
Accuracy2.5”, 3”, 4”, 6” (± 1.5% of full scale )
Temperature-20 ~ 60ºC ( -4 ~ 140ºF )
Application

water , air , gas , oil , and working fluid not corrosive to wetted parts
